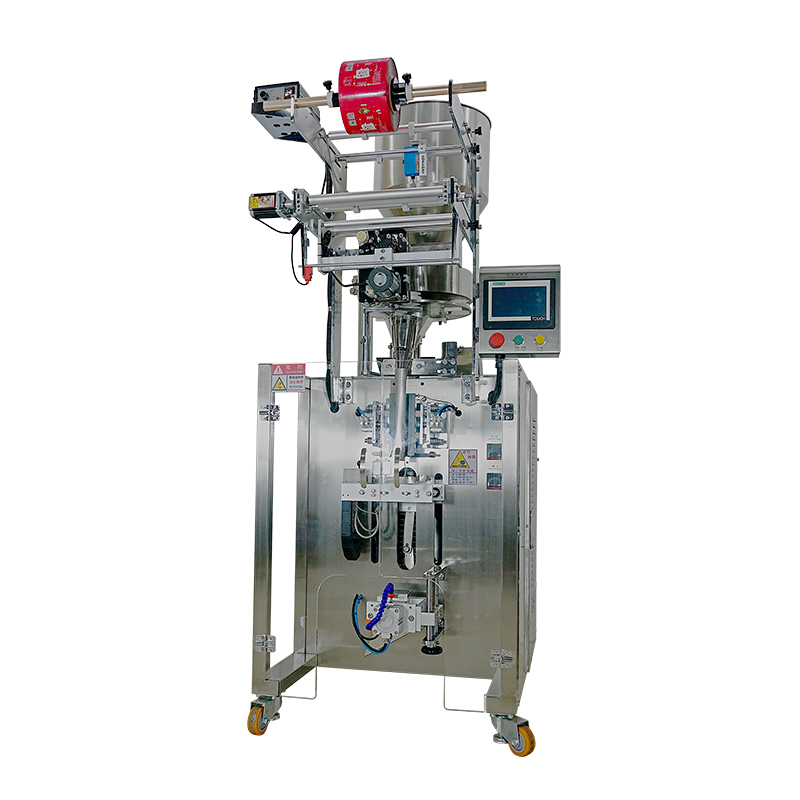

65jl-y round corner powder packaging machine
Characteristic
1. It is applicable to the metrological packaging of powder and other articles in food, medicine, chemical industry and cosmetics industries.
2. It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and print batch number according to customer requirements.
3. Touch screen operation, PLC control, servo motor control bag length, stable performance, convenient adjustment and accurate detection value. Intelligent temperature controller with PID adjustment can control the error range of temperature within 1 ℃.
4. Packaging materials: Polypropylene / polyethylene, aluminum foil / polyethylene, polyester / aluminized / polyethylene, nylon / reinforced polyethylene, paper / polyethylene, etc.

Sealing method: three side sealing and back sealing

Technical parameter
Measurement range: 1 - 20 g (2.6 - 60 ml)
Packing speed: 30 - 60 bags / min
Bag making size: length (L): 30 - 180 mm; width (W): 20 - 75 mm
Overall dimension (L * w * h): 850 * 1100 * 1900 mm
Overall weight: 400 kg
Total power: 220V / 50Hz / 1.4kw

Optional equipment

code printer lower cutter, fillet cutter
