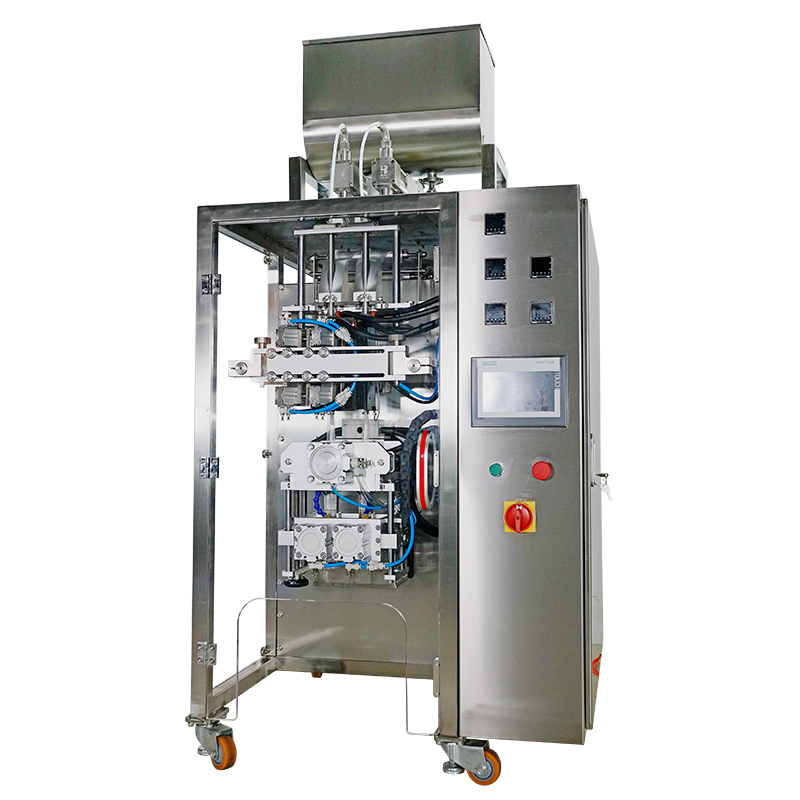

Ys-88 special shaped bag double row packaging machine
Characteristic
1. It is suitable for special-shaped bag metering packaging of liquids, sauces and other articles in food, medicine, chemical industry and cosmetics industries.
2. It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and print batch number according to customer requirements.
3. Touch screen operation, PLC control, servo motor control bag length, stable performance, convenient adjustment and accurate detection value. Intelligent temperature controller with PID adjustment can control the error range of temperature within 1 ℃.
4. Packaging material: PE composite film, such as pure aluminum, aluminum plating, nylon, etc.
Sealing method: back sealing

Technical parameter
Metering range: 1 - 20ml
Bag making size: l: 30 - 180 mm; W: 20 - 60 mm
Packing speed: 40 - 100bags / min
Overall dimension (L * w * h): 930 * 1500 * 2400 mm
Overall weight: 720 kg
Total power: 220V / 50 - 60Hz / 5.5kw
Air source: 0.3m 3 / min
