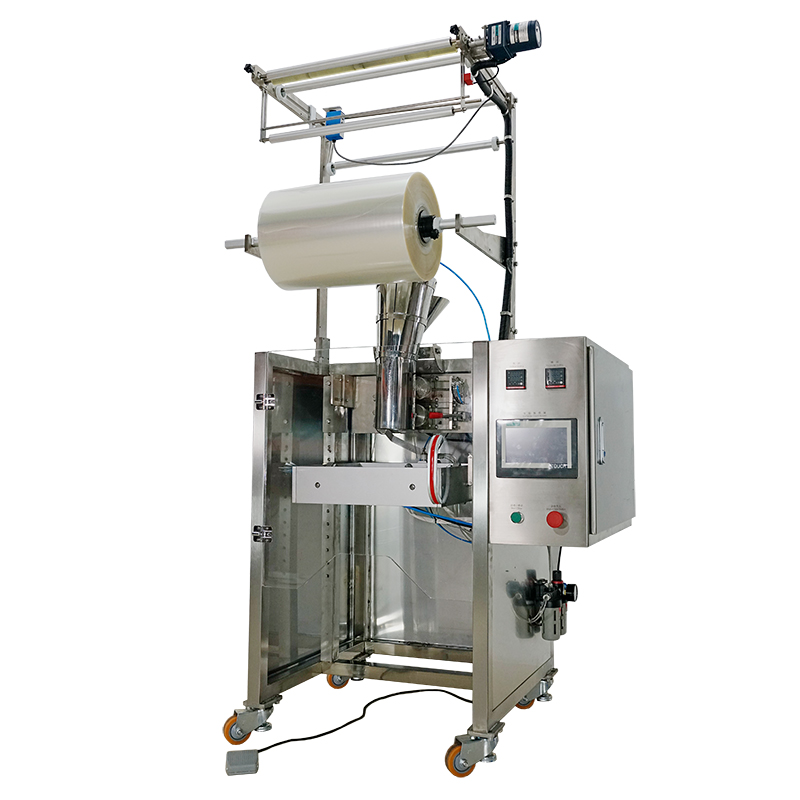

Ys-91 ice bag machine
Characteristic
1. It is applicable to the metering and packaging of particles, powders, liquids, sauces and other articles in food, medicine, chemical industry and cosmetics industries.
2. It can automatically complete bag making, metering, blanking, sealing, cutting and counting, and can be configured to print batch number according to customer requirements.
3. Touch screen operation, PLC control, servo motor control bag length, stable performance, convenient adjustment and accurate detection value. Intelligent temperature controller with PID adjustment can control the temperature error within 1 ℃.
4. Packaging materials: Polypropylene / polyethylene, aluminum foil / polyethylene, polyester / aluminized / polyethylene, nylon / reinforced polyethylene, paper / polyethylene, etc.
Sealing method: three side sealing and back sealing

Technical parameter
Metering range: 0.1 - 1kg
Bag making size: width (W): 50 - 200mm; length (L): 60 - 280mm
Packing speed: 10 - 70bags / min
Overall dimension (L * w * h): 850 * 1100 * 1900mm
Overall weight: 300kg
Total power: AC220V / 50Hz / 3kw
