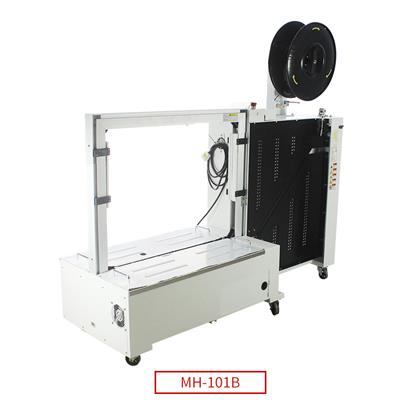

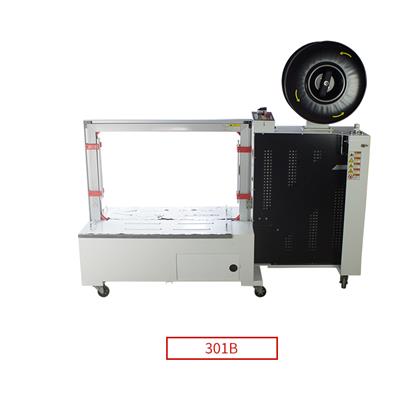

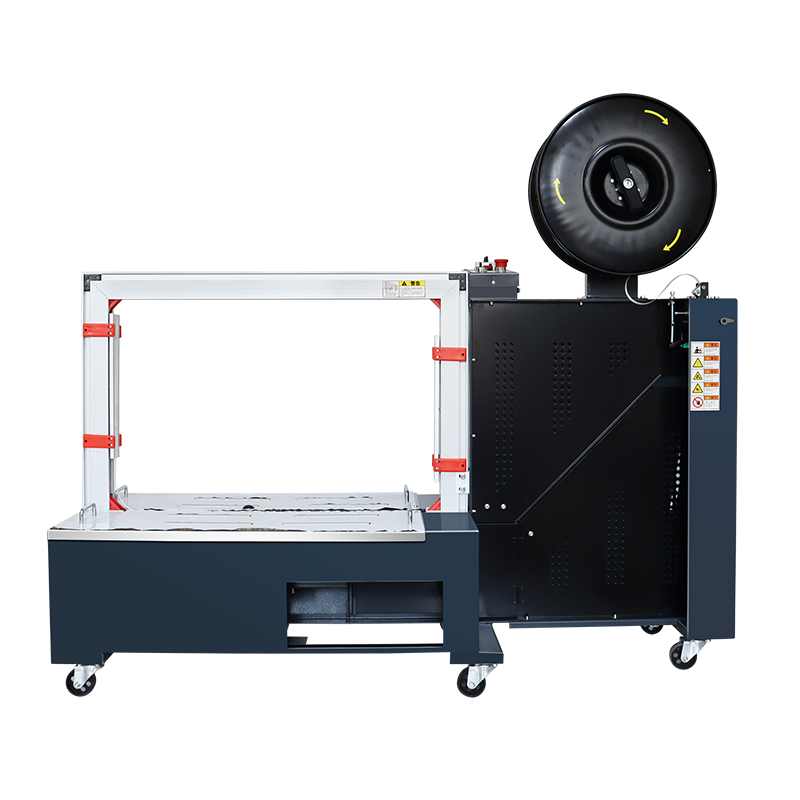

Automatic low table packer 201B/301B/101B
|
Model |
YF-201B |
YF-301B |
YF-101B |
|
Power Supply |
220V 50/60Hz |
220V 50/60Hz |
380V/220V 50/60Hz |
|
power |
0.4KW |
0.5KW |
1KW |
|
Binding speed |
≤ 2.5 seconds / Channel |
≤ 2.0 s / Channel |
≤ 2.5 seconds / Channel |
|
Binding force |
0-50kg |
0-70kg |
0-60kg |
|
Table Height |
450mm customizable |
450mm customizable |
500mm customizable |
|
PP belt specification |
Width 11-12mm 0.7-0.75mm thick |
Width 11-12mm 0.7-0.75mm thick |
Width 9-15mm 0.7-0.75mm thick |
|
Binding specification |
Minimum package size: 80mm wide × 60mm high Standard frame size: 800mm wide × 600mm high (customizable) |
||
|
Overall dimensions: length, width and height |
191*62*162cm |
180*62*161cm |
190*62*175cm |
