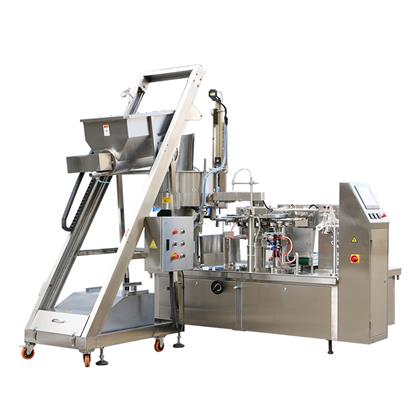

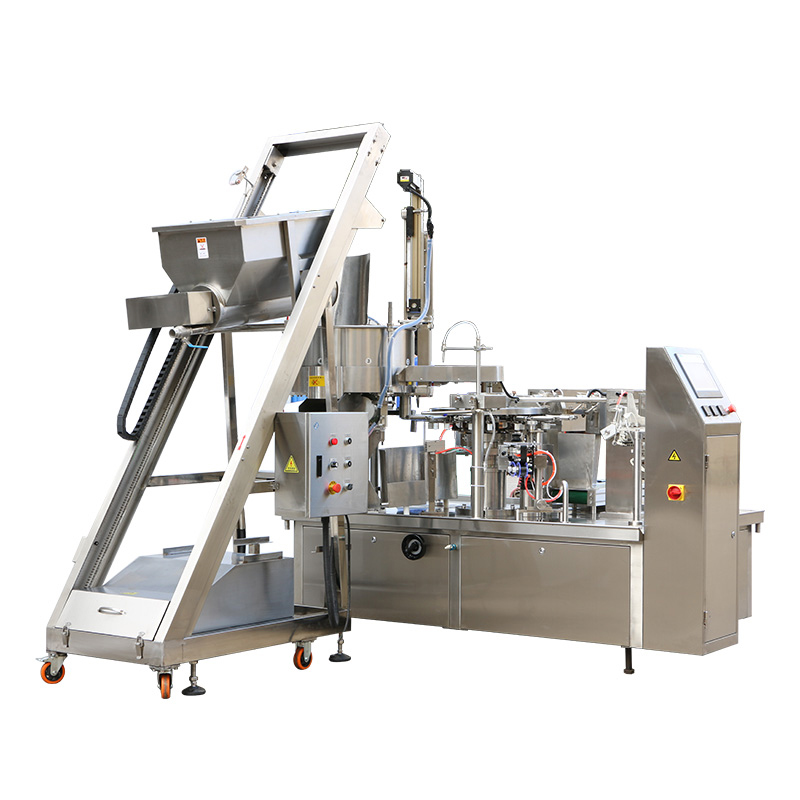

Shrink cup bag packing machine
Product features
1. The full-automatic bag feeding vacuum packaging series can meet various functions, and other equipment can be integrated.
2. The rotary full-automatic bag feeding vacuum packaging machine is composed of two separate rotary bodies (filling system and vacuum system respectively). The filling system is intermittent rotary operation, and the vacuum system is continuous rotary movement.
3. Quickly change the packing bag specification, and the width of the automatic bag feeding device can be automatically adjusted at one time.
4. Comply with the hygienic standards of food processing machinery. The parts on the machine in contact with materials or packaging bags are processed with stainless steel or other materials that meet the requirements of food hygiene, which can improve the hygiene and safety of food.
5. It is easy to clean and can be cleaned in the vacuum chamber
6. The loss of packaging materials is low. The machine uses prefabricated packaging bags with good packaging bag pattern and good sealing quality, so as to improve the product grade. The bag can be recycled without blanking and sealing. It does not waste the bag.
7. Easy operation. PLC plus pod (touch screen) electrical control system is adopted, with friendly man-machine interface and convenient operation. It can automatically adjust the angle and time of pneumatic components.
8. Sealing temperature monitoring function. If the heating tube or thermocouple is damaged, it will display an alarm in the touch screen
Self standing bag, handbag, zipper bag, four side sealed bag, three side sealed bag,
paper bag, composite bag, etc
All kinds of duck neck chicken leg pickles, dried tofu, pickled mustard, meat products,
eggs and other materials requiring vacuum packaging
Model
HL8-ZK10-200
Bag specification
W:50-250mm L:50-380mm
Bag type
Filling range
20-1000g
Weighing accuracy
Deviation error ≤± 1%
Packaging speed
35-60 packs / sub (determined by product characteristics and filling weight)
Scope of application
Host weight
2400kg
Vacuum strength
≤-0.1mpa
Host power
4kw (excluding vacuum pump)
Driving power supply
Three phase five wire 380V 50Hz
Overall dimension
2200×2200×1600mm(excluding hoist)
Gas consumption
20.4m3/min (compressed air is provided by the user)
Cooling water
Cooling water: 15 ℃ - 20 ℃, 3L / min litres / min (cooling machine is recommended}
